Halbach Array Magnet: Definition & Application Scenarios

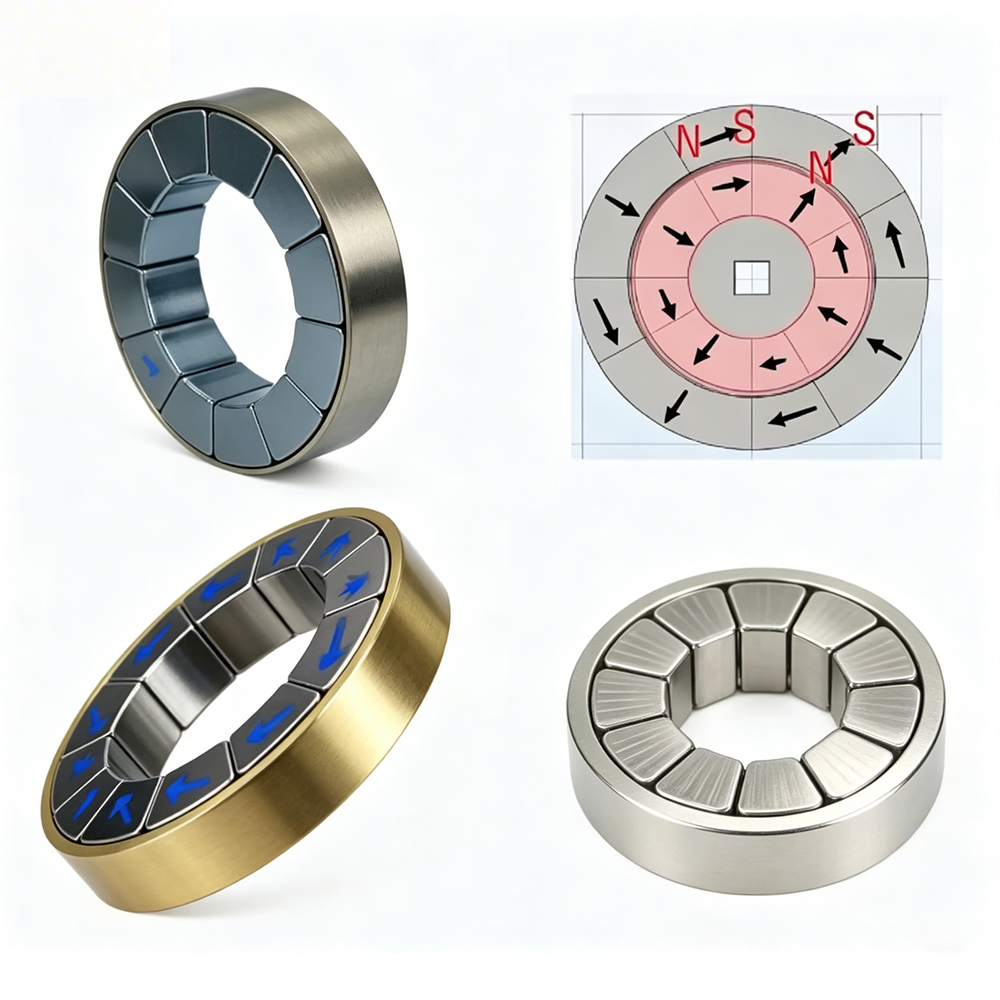

A Halbach array magnet is a specialized permanent magnet assembly where each magnet segment’s magnetization direction rotates progressively  instead of simple N-S alternation. This geometric arrangement superposes magnetic fields constructively on one side and cancels flux on the opposite side, creating a strong unilateral magnetic field with minimal stray flux on the backside. It redistributes magnetic energy rather than boosting total magnet strength, delivering superior field control efficiency.

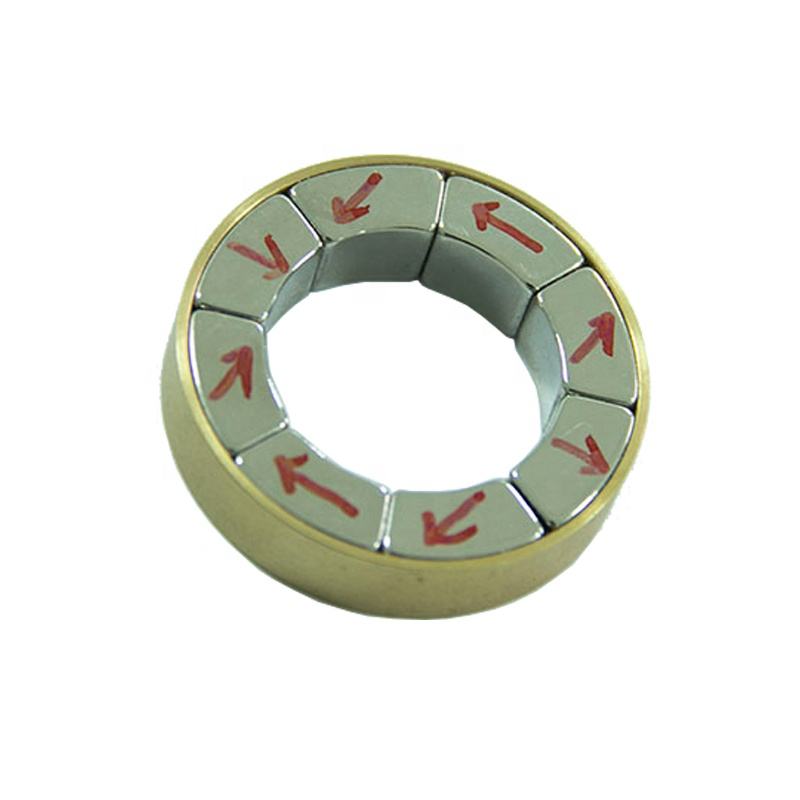

You should adopt a Halbach array when unilateral flux concentration, low stray interference, high power density, and lightweight design are prioritized. It is ideal for high-performance brushless DC motors, EV traction motors, and aerospace servo motors, as it eliminates heavy back iron, cuts rotor weight, and boosts torque density.In medical engineering, cylindrical Halbach arrays enable compact, portable MRI devices by generating uniform internal magnetic fields while shielding external sensitive electronics. Additionally, it suits particle accelerators, wind power generators, magnetic bearings, and precision magnetic sensors, scenarios where minimizing magnetic leakage and optimizing spatial magnetic performance are critical. Though manufacturing requires precise magnet orientation and raises assembly costs, its energy-saving and miniaturization advantages make it a mainstream choice in advanced magnetic engineering fields.
